Communication Format Definition

Communication Format Definition

Communication Format Definition

General#

The MVR communication format - MVR-xchange - shall support the exchange of MVR files over network without the need of an external transport device like a USB-stick. The exchange allows multiple clients within the same network to share MVR files.

MVR-xchange defines two modes of operation (see Figure 2):

• TCP Mode, which works without configuration but does not support routing.
• WebSocket Mode, which need minimal configuration but allows for routing.

Figure 2 — MVR-xchange mode of operation#

a) TCP Mode of protocol

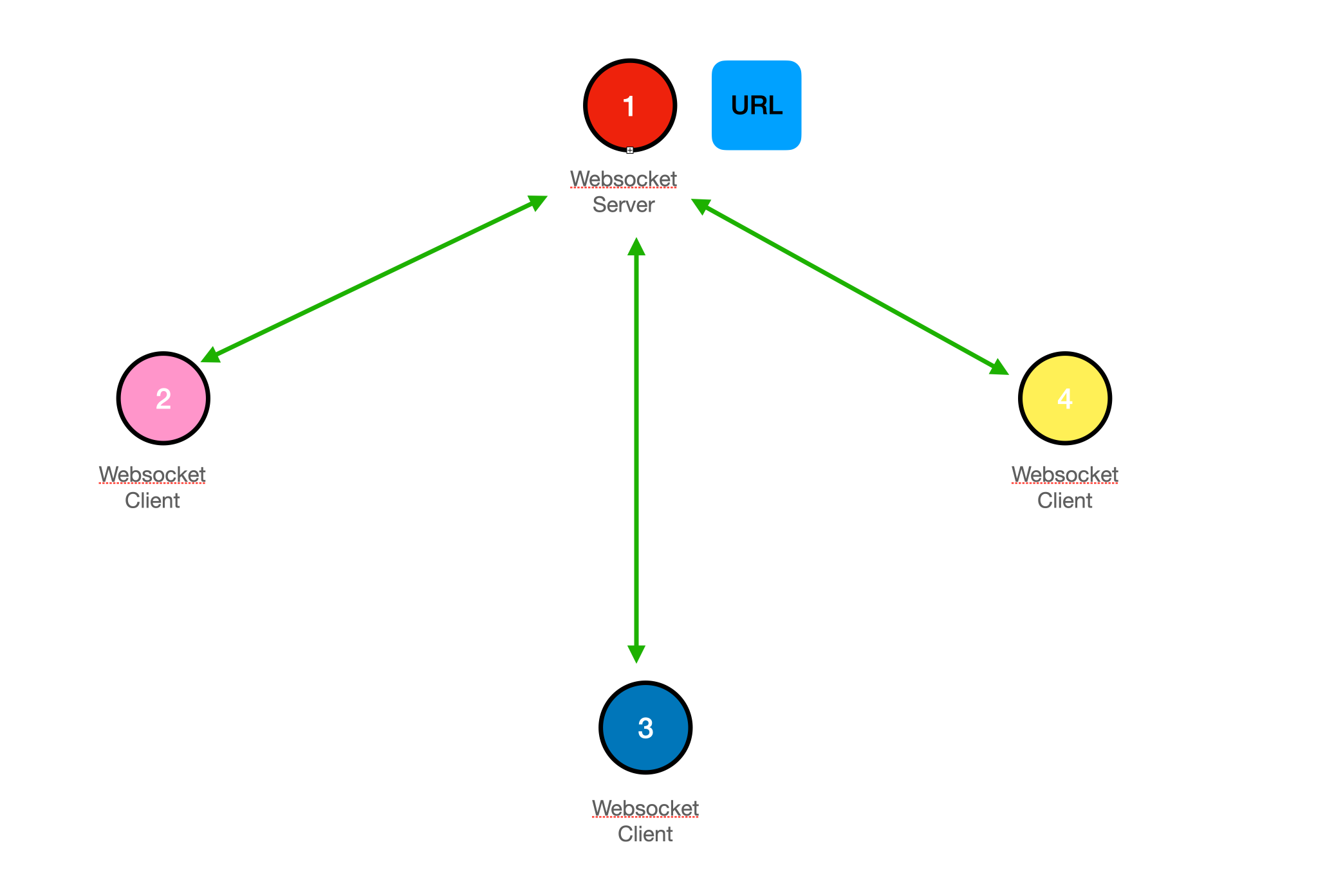

b) WebSocket Mode of protocol

TCP Mode of protocol#

The TCP Mode allows users to directly use the MVR-xchange without the need for configuration or special hardware. Discovery of available MVR-xchange clients shall be performed by mDNS (RFC6762 Multicast DNS). Every application that wants to join a MVR-xchange group, need to register a mDNS service.

The service name shall be _mvrxchange._tcp.local.. The sub service name shall be xxxx._mvrxchange._tcp.local. where xxxx is the name of the group. . Each client shall negotiate a unique hostname via the methods described in the mDNS standards. Each client shall have a PTR, SRV, TXT and A and/or AAAA record.

The TXT record should contain the information given in Table 65:

Table 65 — TXT Record Attributes#

The format of the TXT record matches RFC1035.

When a MVR-xchange client wants to join a MVR-xchange group, he needs to register the service and sub service, and send a MVR_JOIN message to the other stations that register this sub service name. When a MVRxchange client wants to create a MVR-xchange group, he needs to register a service name which is currently not in use and wait for other MVR-xchange clients to join.

You can upgrade a TCP Mode MVR-xchange group to use the WebSocket Mode with sending a MVR_NEW_SESSION_HOST message providing the URL of the new service.

WebSocket Mode of protocol#

The WebSocket Mode allows users to create a routable service for the MVR-xchange. Discovery works with the normal DNS according to RFC6763. The service name needs to be a valid URL that can be resolved by the DNS server.

The DNS entry should point to the IP of the service running the websocket server. MVR-xchange clients that want to join this MVR-xchange Group need to connect with a web socket client (RFC6455— The WebSocket Protocol).

Packet & Message definition#

General#

Packages define how the message will be send to the MVR-xchange client, while the message describes the content. All the messages are defined, unless otherwise stated, as JSON documents (ISO/IEC 21778:2017). Packages are defined based on the mode of communication. They are defined for TCP Mode and WebSocket mode differently.

TCP Mode#

When in TCP Mode, all messages are send via TCP directly to the client. The packet is encoded as specified in Table 66:

Table 66 — Packet & Message Definitions#

The order and size is defined as follows:

uint32 MVR_PACKAGE_HEADER
uint32 MVR_PACKAGE_VERSION
uint32 MVR_PACKAGE_NUMBER
uint32 MVR_PACKAGE_COUNT
uint32 MVR_PACKAGE_TYPE
uint64 MVR_PAYLOAD_LENGTH
char[] MVR_PAYLOAD_BUFFER

Where the following applies (Table 67):

Table 67 — Data Type MVR-xchange package#

NOTE All multi-byte fields defined shall be transmitted in network byte (big-endian) order

WebSocket Mode#

When in WebSocket Mode, all messages should be send as data frame Text RFC6455 5.6 Text 0x1 unless otherwise defined.

MVR_JOIN message#

General#

When a MVR-xchange client connects with another MVR-xchange client, the first MVR-xchange client needs to send a MVR_JOIN message.

NOTE A MVR-xchange client can send multiple MVR_JOIN messages to the same server during the same connection to update its name or get the latest MVR file list.

TCP Mode#

Figure 3 shows the TCP mode for a MVR-xchange client joining MVR-xchange group.

Figure 3 — TCP mode: MVR-xchange client joining MVR-xchange group#

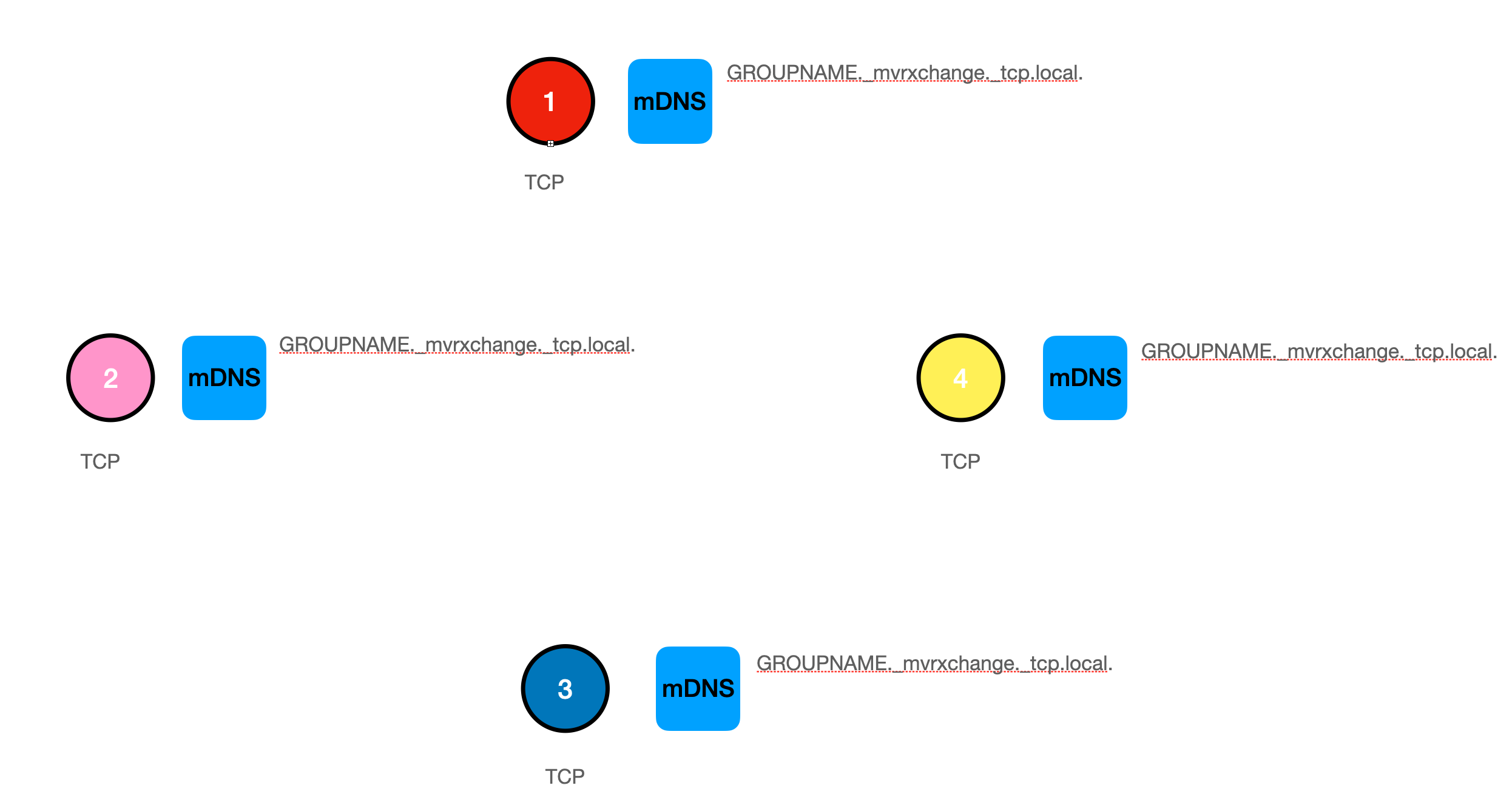

a) MVR-xchange client 2 joins the MVR-xchange Group

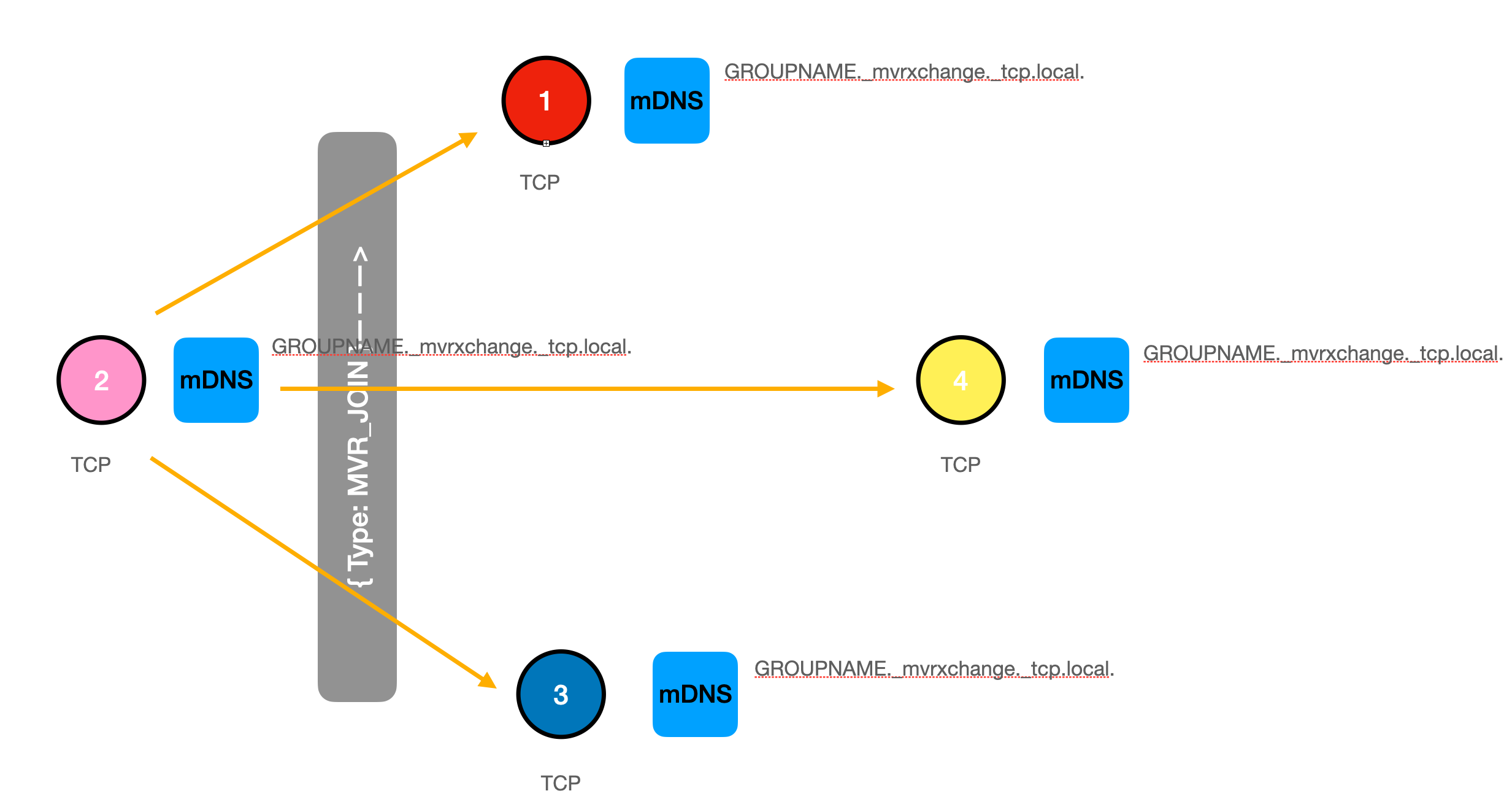

b) and sends to all mDNS Service a `MVR_JOIN` message

WebSocket Mode#

Figure 4 shows the Websocket mode for a MVR-xchange client joining MVR-xchange group.

Figure 4 — Websocket mode: MVR-xchange client joining MVR-xchange group#

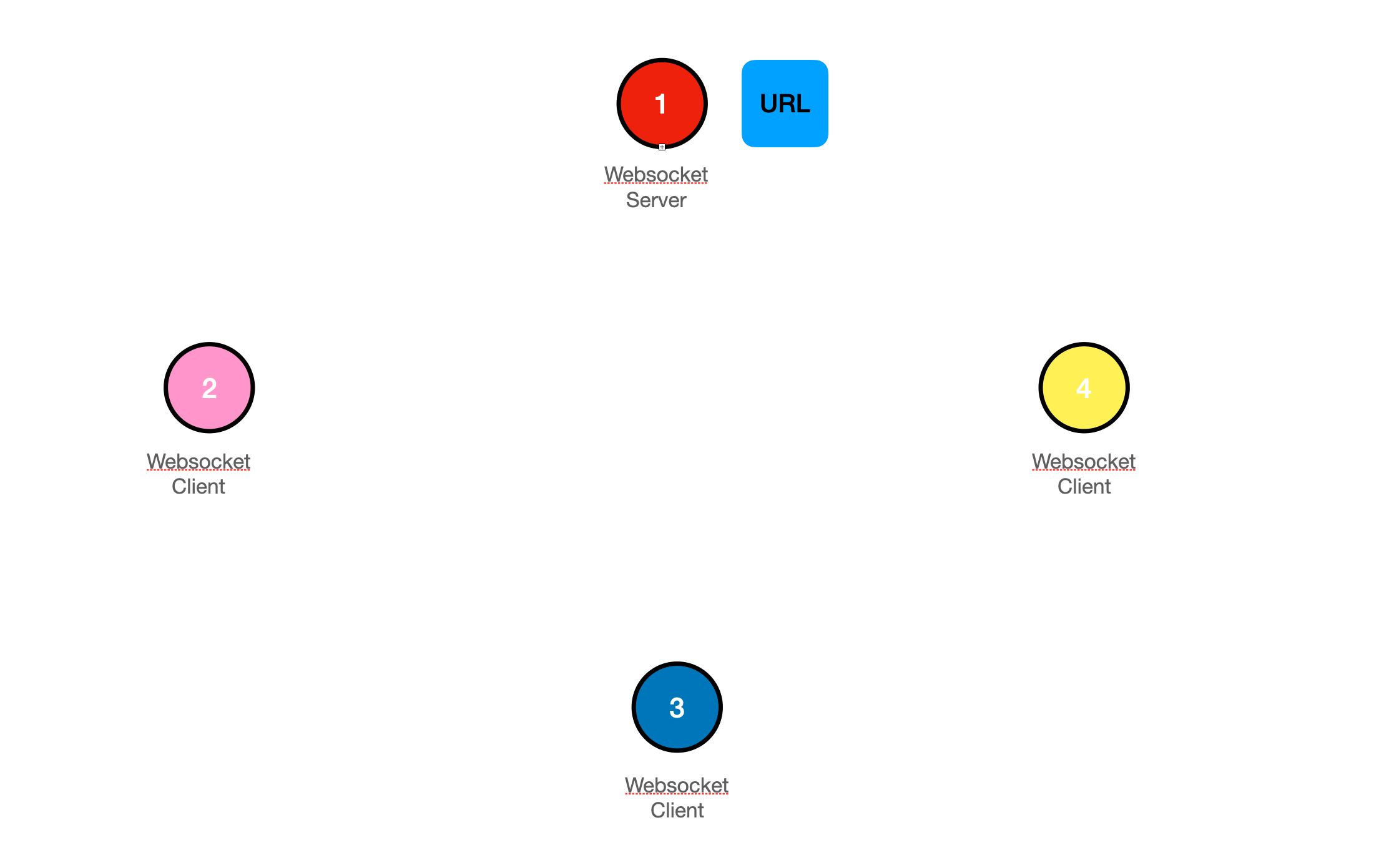

a) 1 Is a Websocket Server and has a URL

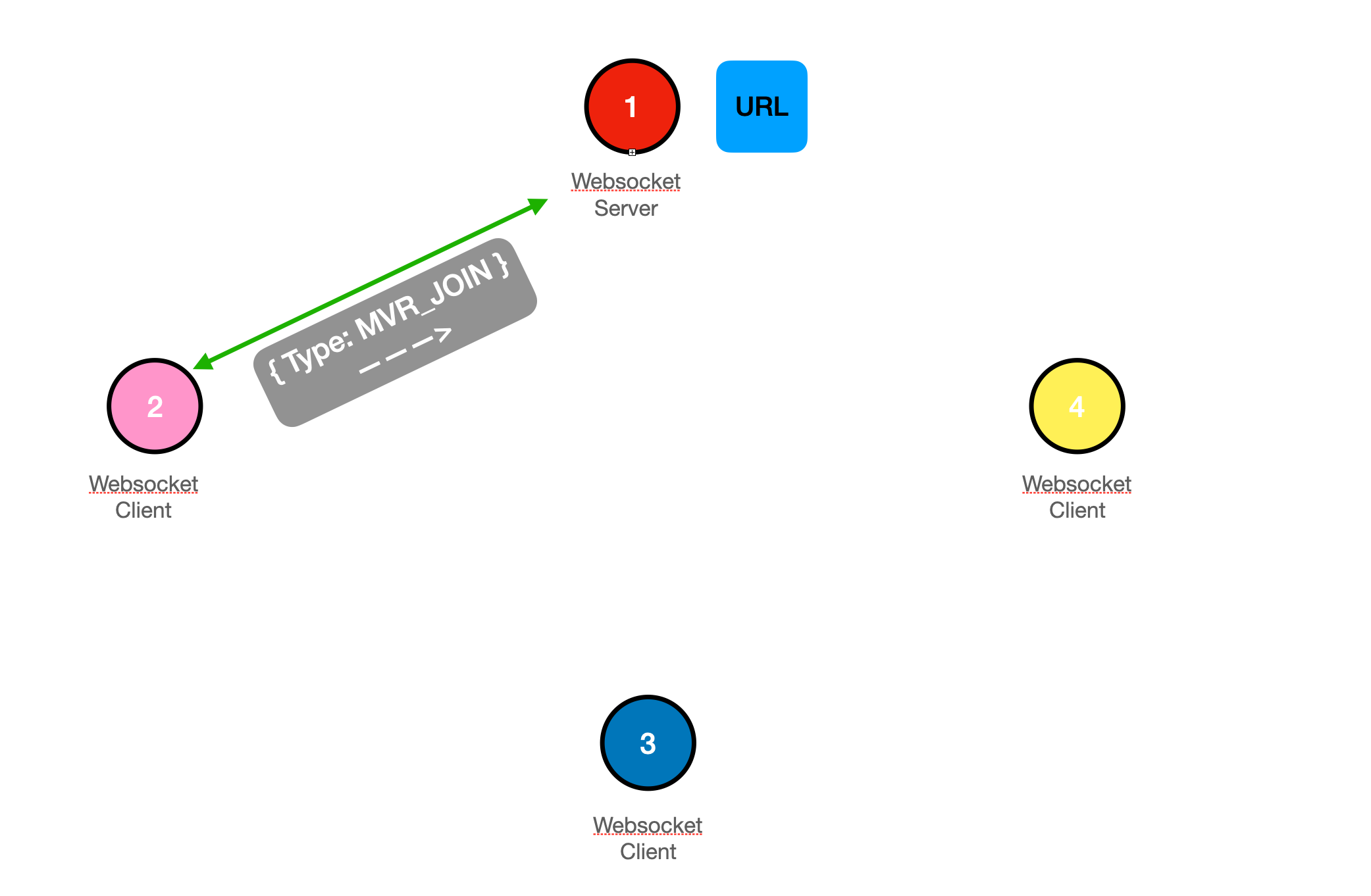

b) MVR-xchange client 2 connects to the websocket sever and send a `MVR_JOIN` message

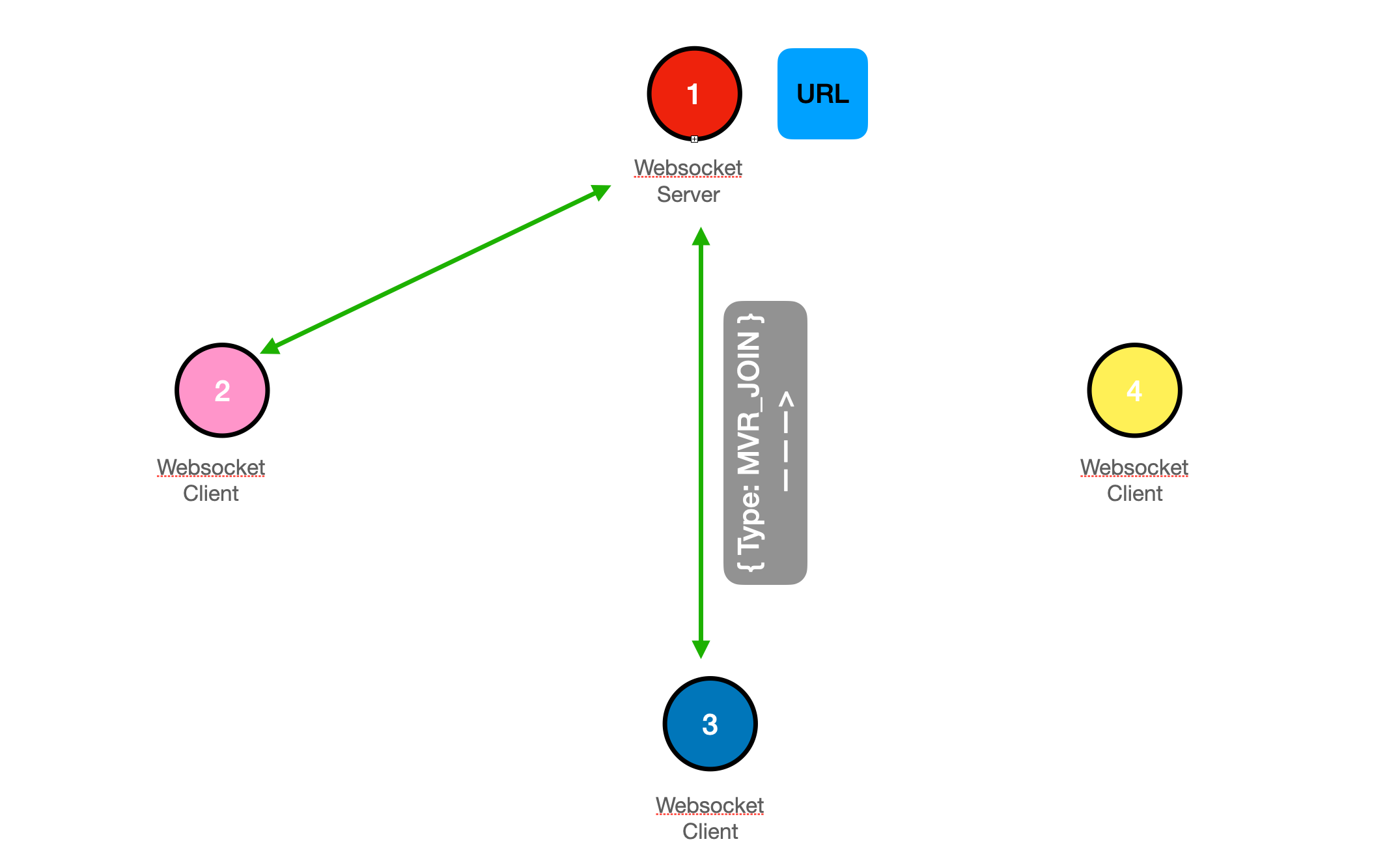

c) MVR-xchange client 3 connects to the websocket sever and send a `MVR_JOIN` message

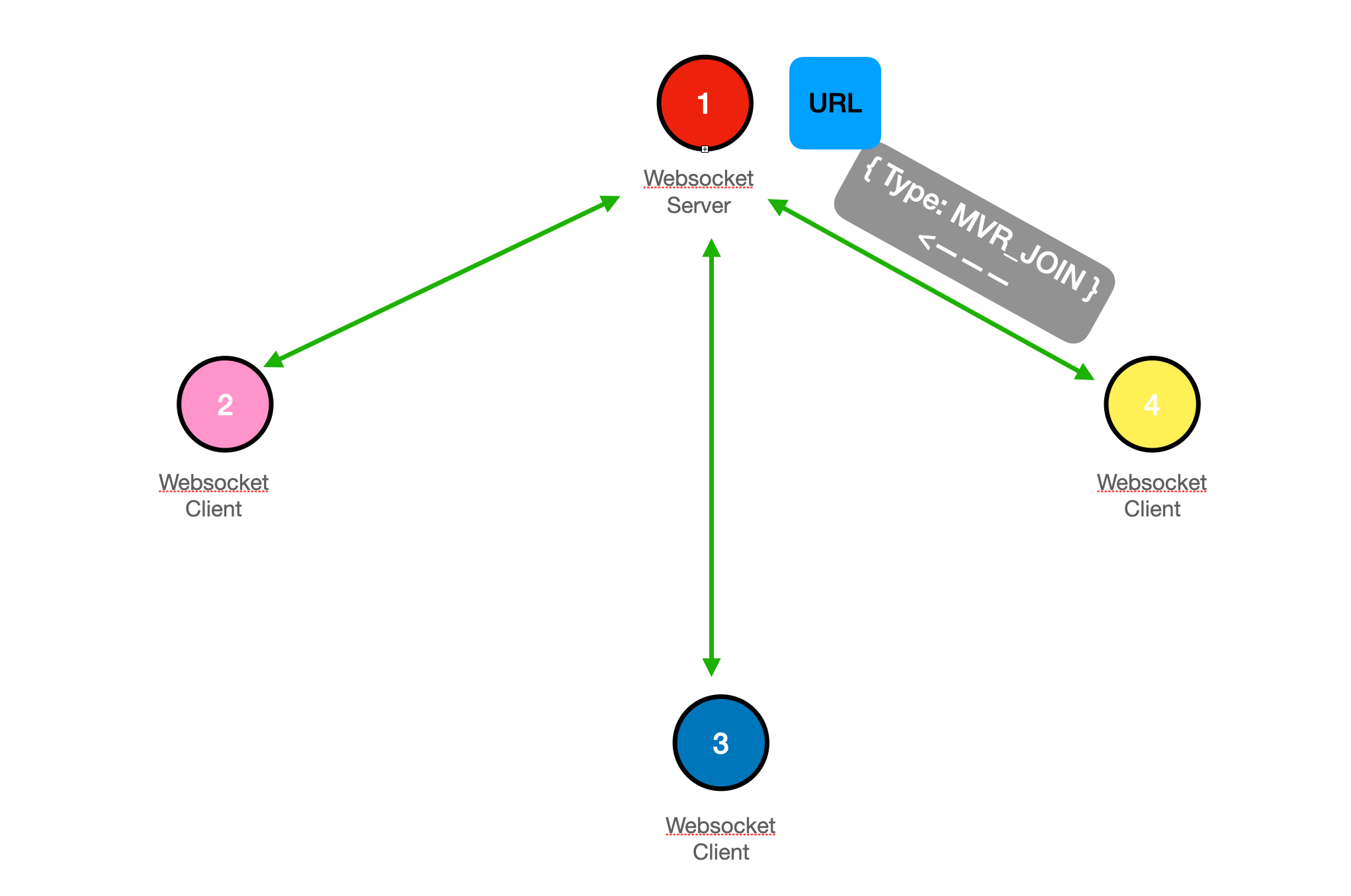

d) MVR-xchange client 3 connects to the websocket sever and send a `MVR_JOIN` message

The defined MVR_JOIN message Attributes are specified in Table 68.

Table 68 — MVR_JOIN message Attributes#

The defined MVR_JOIN response Attributes are specified in Table 69.

Table 69 — MVR_JOIN response Attributes#

EXAMPLE

Request:

{
  "Type": "MVR_JOIN",
  "Provider":"MVRApplication",
  "verMajor":"1",
  "verMinor":"6",
  "StationUUID":"4aa291a1-1a62-45fe-aabc-e90e5e2399a8",
  "StationName":"MVR Application from user A at location B",
  "Files": [
    {
      ...MVR_COMMIT_MESSAGE_ARGS
    },
    {
      ...MVR_COMMIT_MESSAGE_ARGS
    },
    {
      ...MVR_COMMIT_MESSAGE_ARGS
    }
  ]

}

Response:

{
  "Type": "MVR_JOIN_RET",
  "OK": "true",
  "Message": "",
  "verMajor":"1",
  "verMinor":"6",
  "StationUUID":"a7669ff9-bd61-4486-aea6-c190f8ba6b8c",
  "StationName":"MVR Application from user A at location B",
  "Files": [
    {
      ...MVR_COMMIT_MESSAGE_ARGS
    },
    {
      ...MVR_COMMIT_MESSAGE_ARGS
    },
    {
      ...MVR_COMMIT_MESSAGE_ARGS
    }
  ]
}

MVR_LEAVE message#

A client sends a MVR_LEAVE when it wants to quit an MVR-xchange Group and does not want to get updates about new MVR files anymore.

For the WebSocket mode [Figure 5 a)]: it is not required to terminate the Websockets connection, but it can be done. For the TCP mode [Figure 5 b)]: it is not required to turn down the mDNS service, but it can be done.

In order to join again, the client needs to send a MVR_JOIN message again.

Figure 5 — MVR_LEAVE message to quit MVR-xchange group#

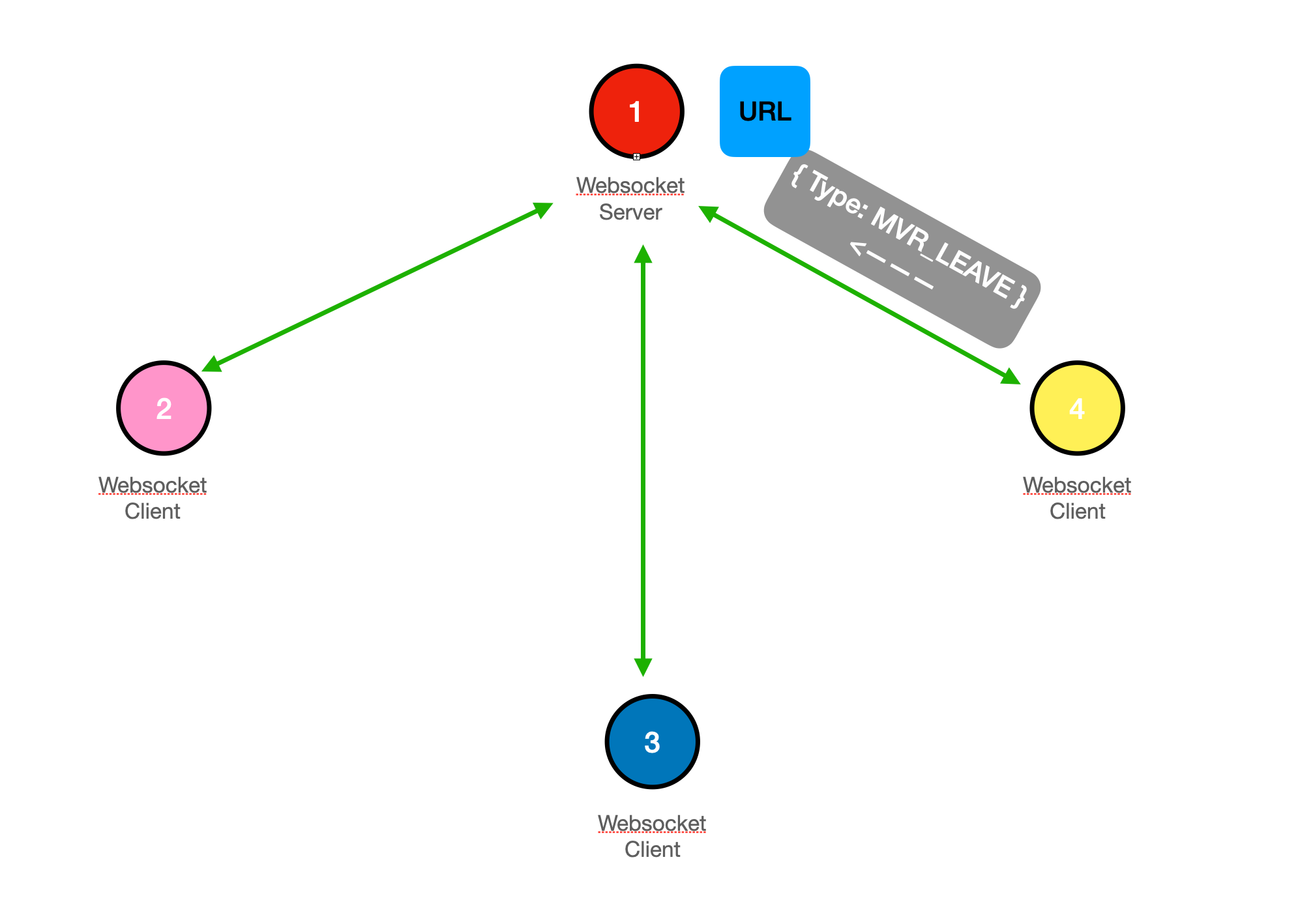

a) In Webssocket mode: MVR-xchange client 4 send a `MVR_LEAVE` message to the websocket server.

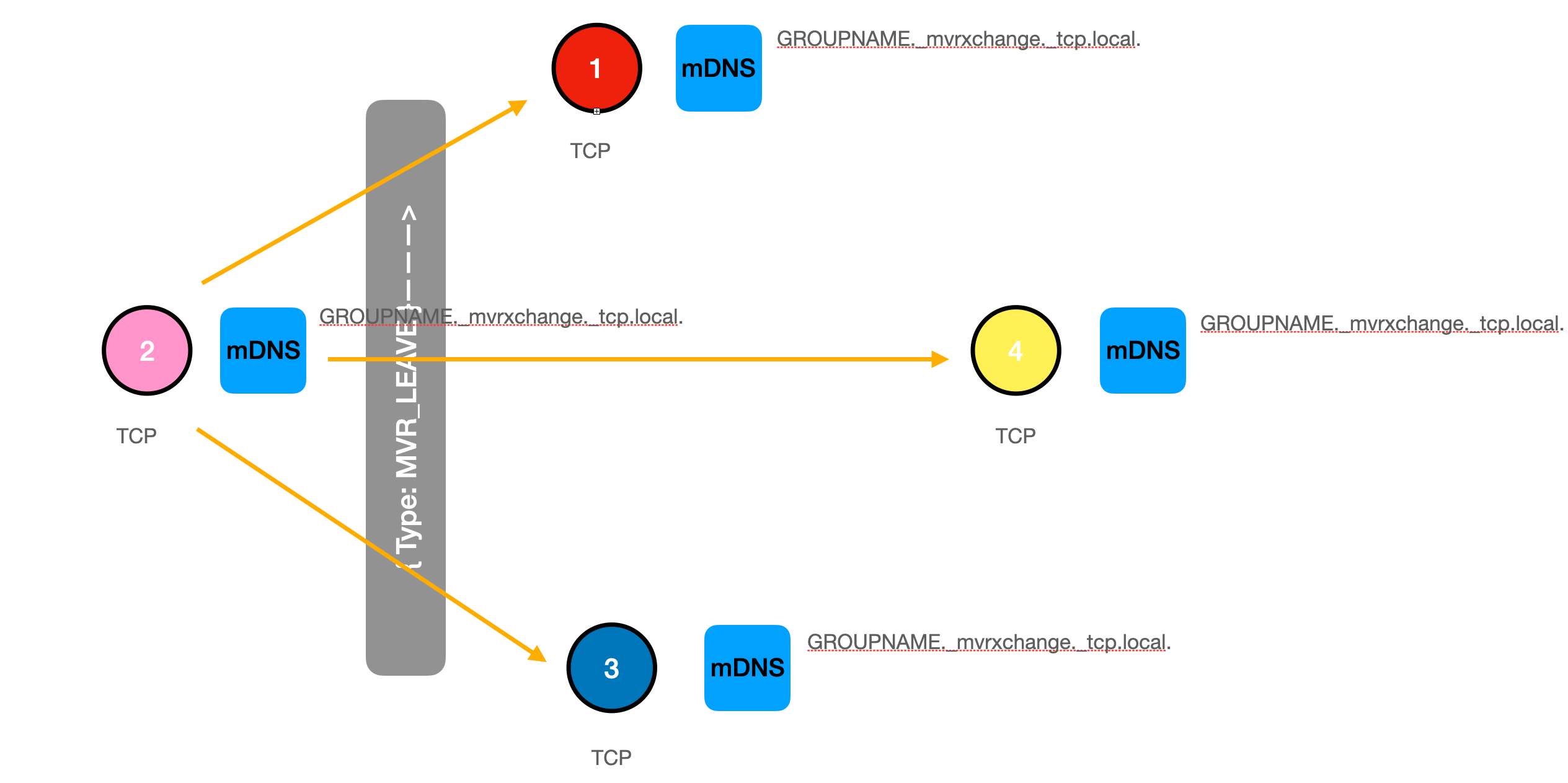

b) In TCP Mode: MVR-xchange client 2 send a `MVR_LEAVE` message to all stations

The defined MVR_LEAVE message Attributes are specified in Table 70.

Table 70 — MVR_LEAVE message Attributes#

The defined MVR_LEAVE response Attributes are specified in Table 71.

Table 71 — MVR_LEAVE response Attributes#

EXAMPLE

Request:

{
  "Type": "MVR_LEAVE",
  "StationUUID":"",
}

Response:

{
  "Type": "MVR_LEAVE_RET",
  "OK": "true",
  "Message": ""
}

MVR_COMMIT message#

General#

The MVR commit message informs all connected stations that there is a new MVR commit. This message only informs the stations about the existence of the new file. Stations needs to request the MVR file with a MVR_REQUEST message.

Each MVR commit represents one revision of the project. Therefore an array of MVR commits, as found in the MVR_JOIN message, represents the working history of the project. It is up to the client how many commits are kept in store at any time.

The following chart displays the process when one client sends a MVR_COMMIT message to the server, and the server distributes this in the session.

TCP Mode#

The MVR-xchange client informs all other MVR-xchange clients about the new commit (see Figure 6). Note that the client needs to respect any previous MVR_LEAVE messages themselves.

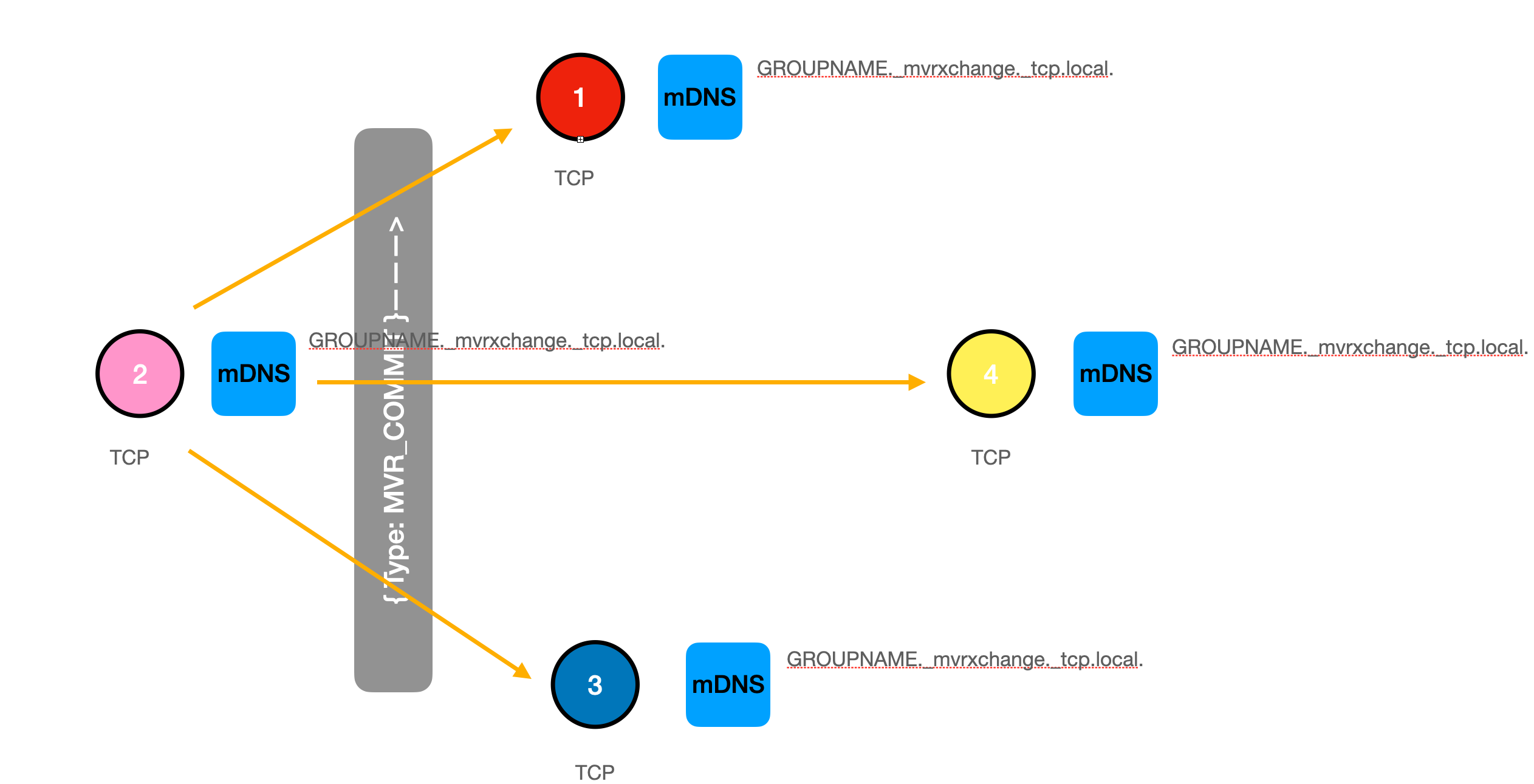

Figure 6 — TCP mode: MVR-xchange client commits to MVR-xchange group.#

MVR-xchange client sends the `MVR_COMMIT` message to the connected stations.

WebSocket Mode#

Figure 7 shows the WebSocket mode for a MVR-xchange client that commits to MVR-xchange group.

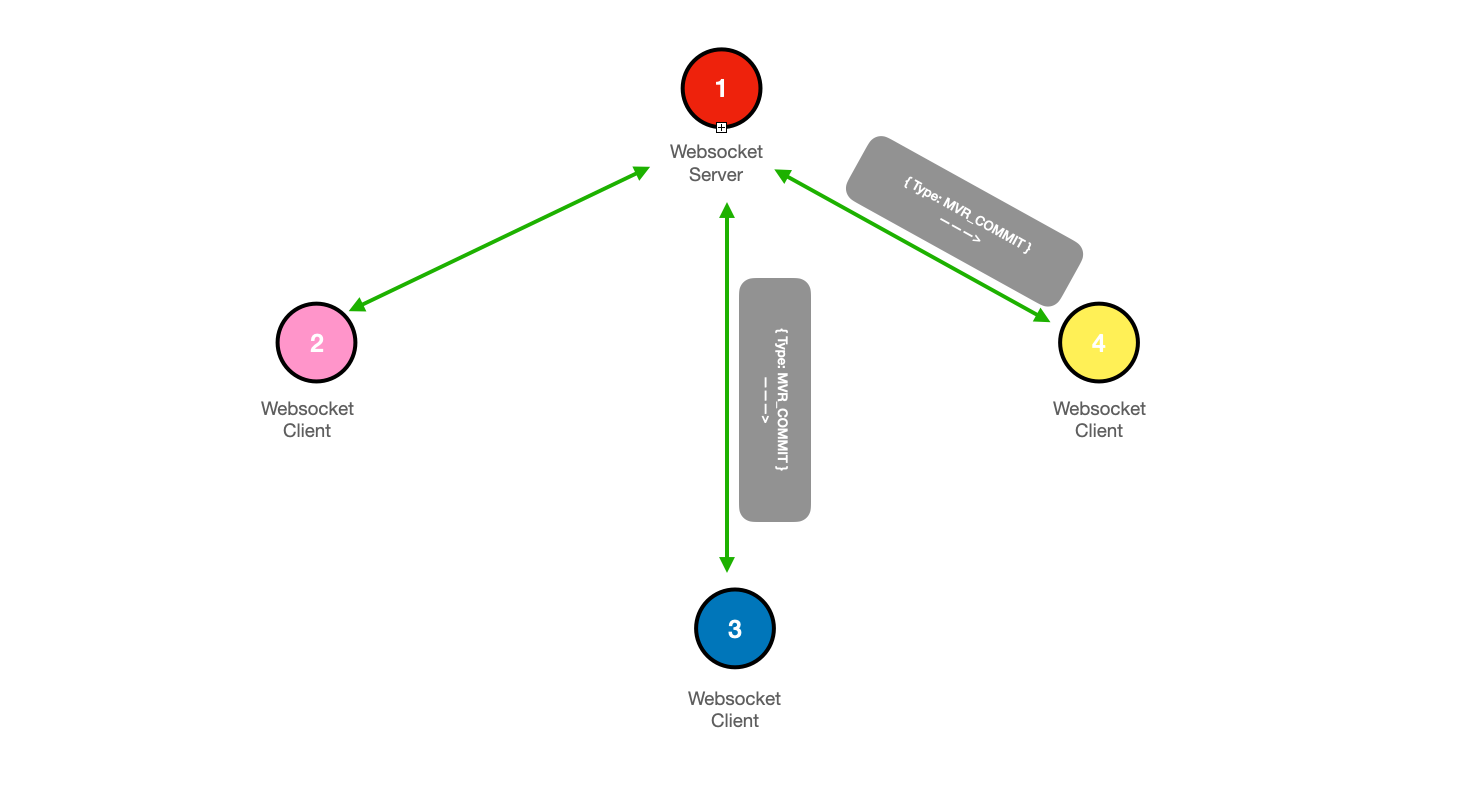

Figure 7 — Websocket mode: MVR-xchange client commits to MVR-xchange group.#

a) MVR-xchange client sends message to server

b) Server sends messages to all connected MVR-xchange clients but the sender

Figure 8 displays the process when the server is the station who is providing a new MVR file. In this case the MVR info is directly transmitted to the connected stations.

Figure 8 — Server makes the MVR_COMMIT itself, and only sends it to connected MVR-xchange clients#

Server makes the `MVR_COMMIT` itself, and only sends it to connected MVR-xchange clients

The defined MVR_COMMIT message Attributes are specified in Table 72.

Table 72 — MVR_COMMIT message Attributes#

The defined MVR_COMMIT response Attributes are specified in Table 73.

Table 73 — MVR_COMMIT response Attributes#

Request:
{
  "Type": "MVR_COMMIT",
  "verMajor":1,
  "verMinor":6,
  "FileUUID":"",
  "ForStationsUUID":[],
  "FileSize":256,
  "Comment":"My complete description of what I have changed",
}
Response:
{
  "Type": "MVR_COMMIT_RET",
  "OK": "true",
  "Message": ""
}

MVR_REQUEST message#

This packet requests a MVR file from a station. You either can request a specific MVR via its UUID or get the last available MVR File by leaving the field empty. The underlying software will then generate a file based on the current state. This also triggers a MVR_COMMIT message to other connected stations.

The available MVR UUIDs can be retrieved using the MVR_COMMIT message.

If the station does not have the specified MVR file, it returns a MVR_REQUEST Json Response, otherwise it sends the buffer of the MVR file.

NOTE 1 When in WebSocket Mode, the binary frame flag will be used to tell the receiver if a Buffer or JSON is sent. NOTE 2 When in TCP Mode, the MVR_PACKAGE_TYPE flag will be used to tell the receiver if a Buffer or JSON was sent.

Figure 9 shows the Websocket mode for a MVR-xchange client that is requesting a file.

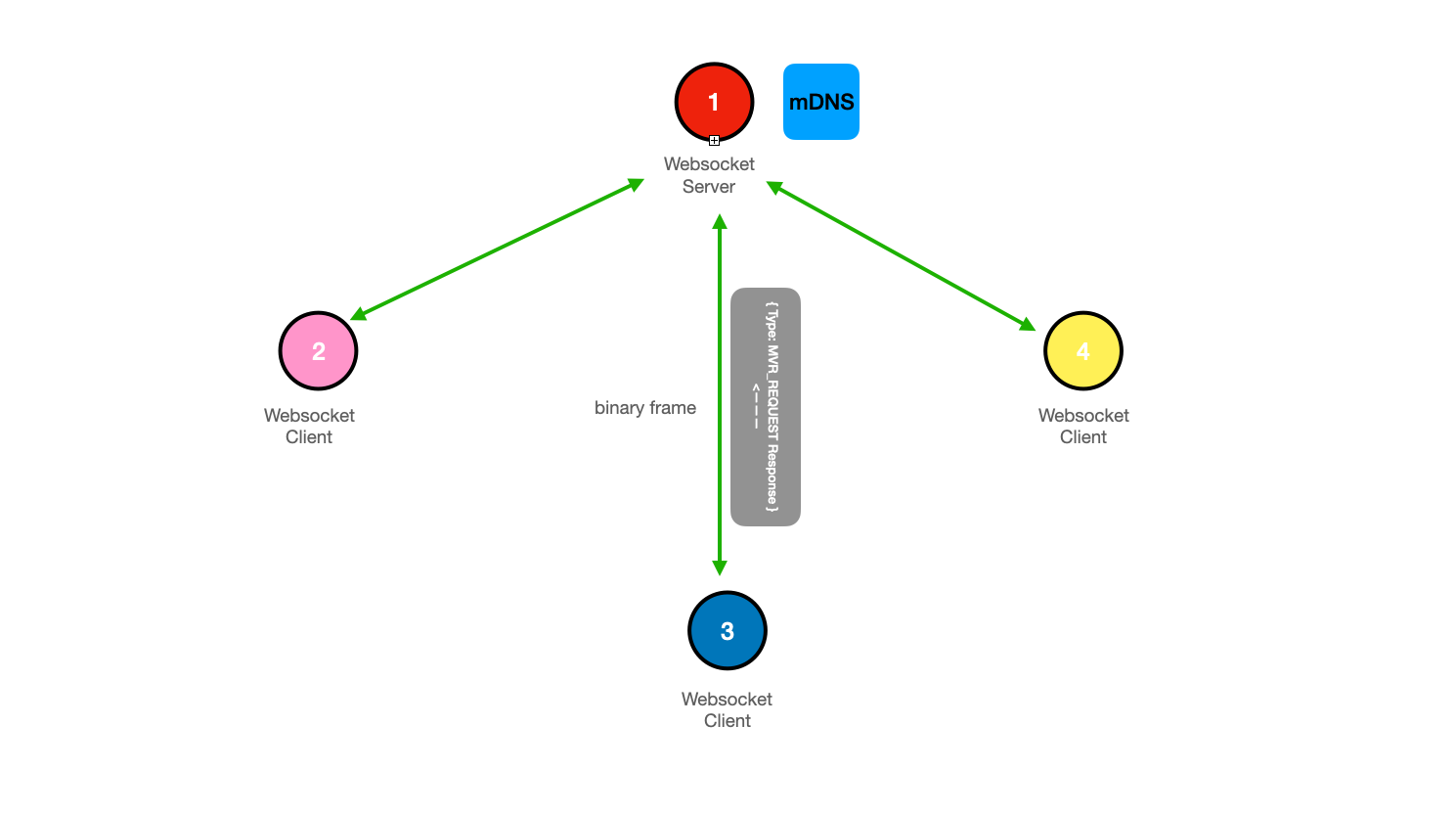

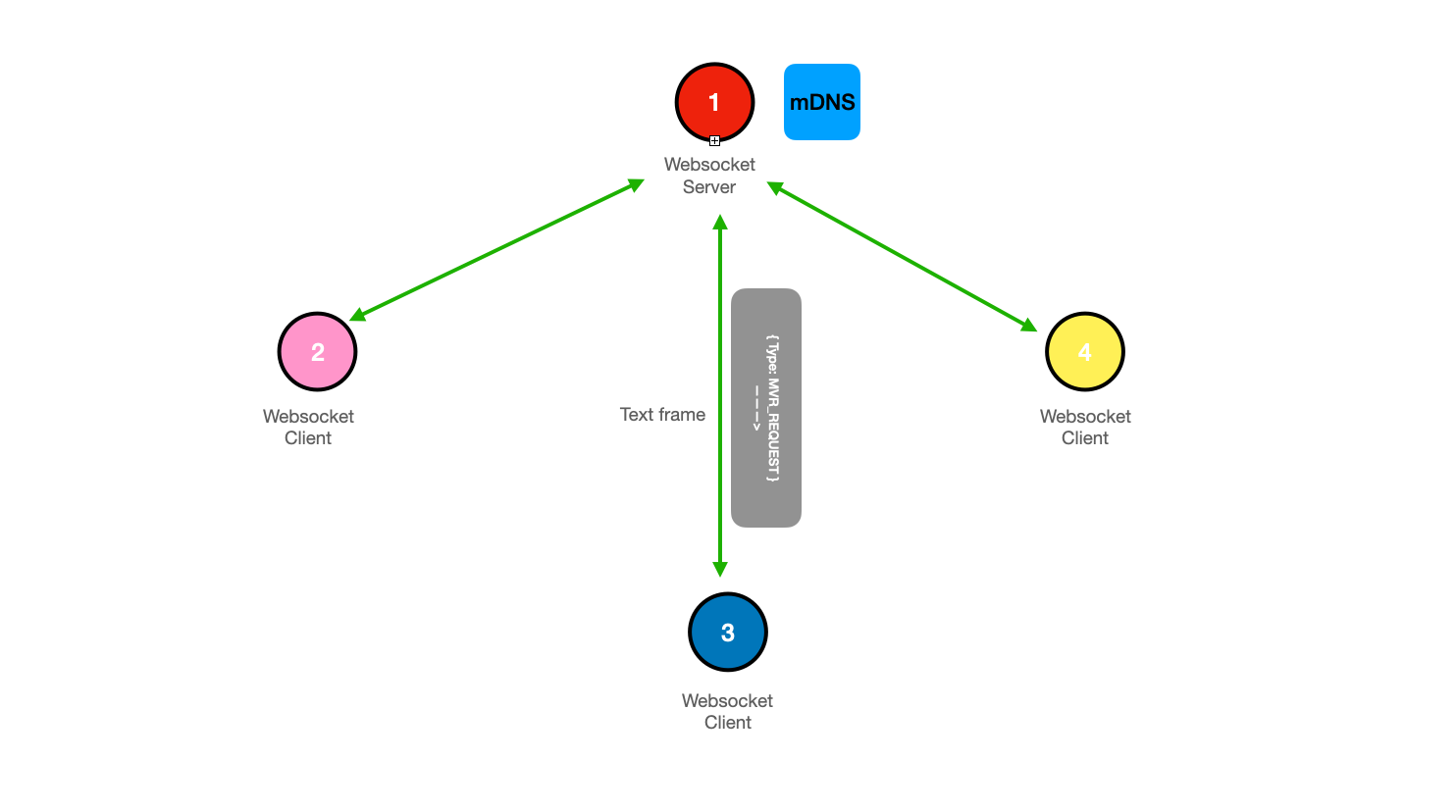

Figure 9 — Websocket mode: MVR-xchange client requesting file#

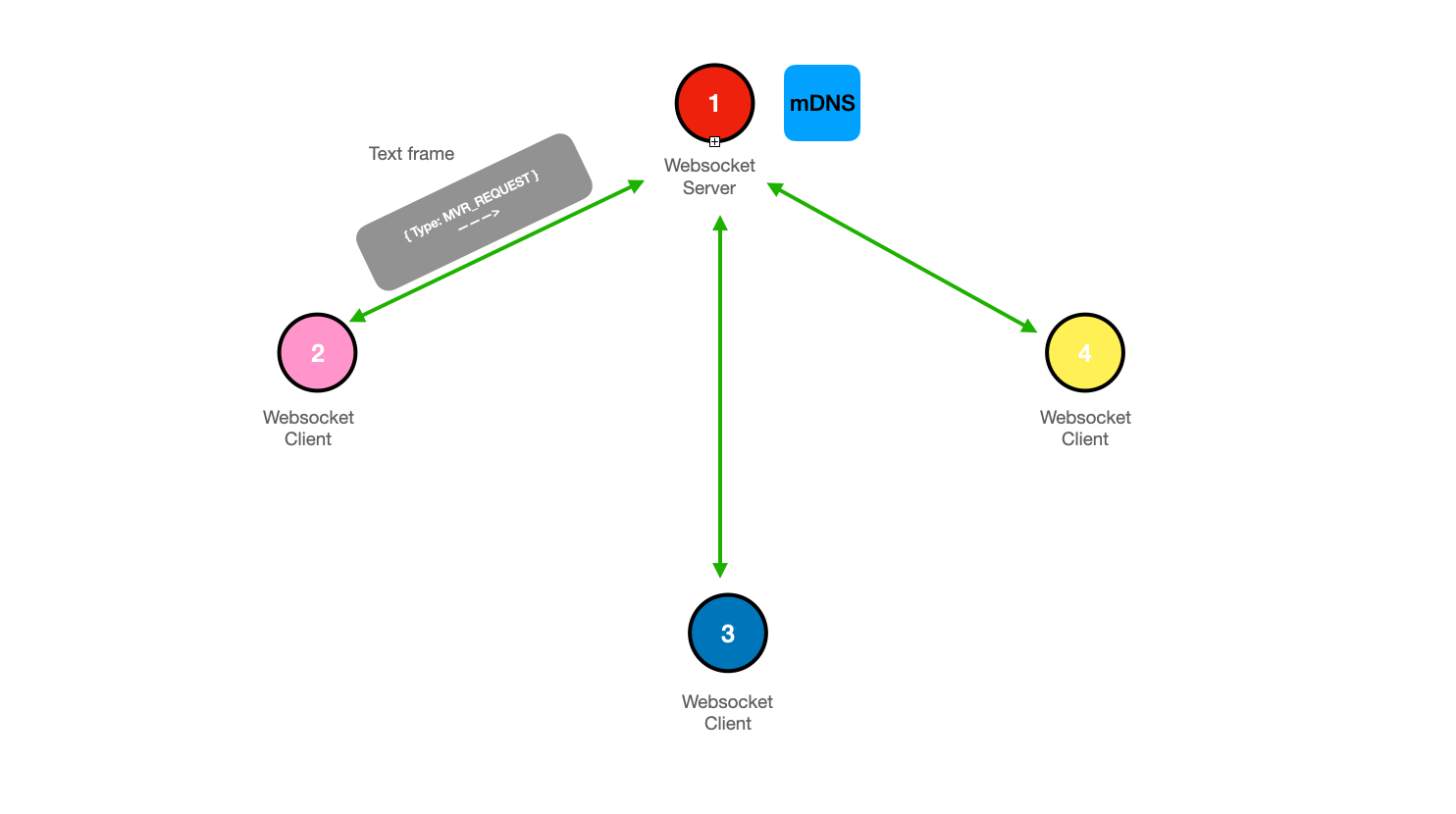

a) Station requests a MVR from another station

b) Server sends the request to the right station

c) Station sends the MVR file as binary data to the server

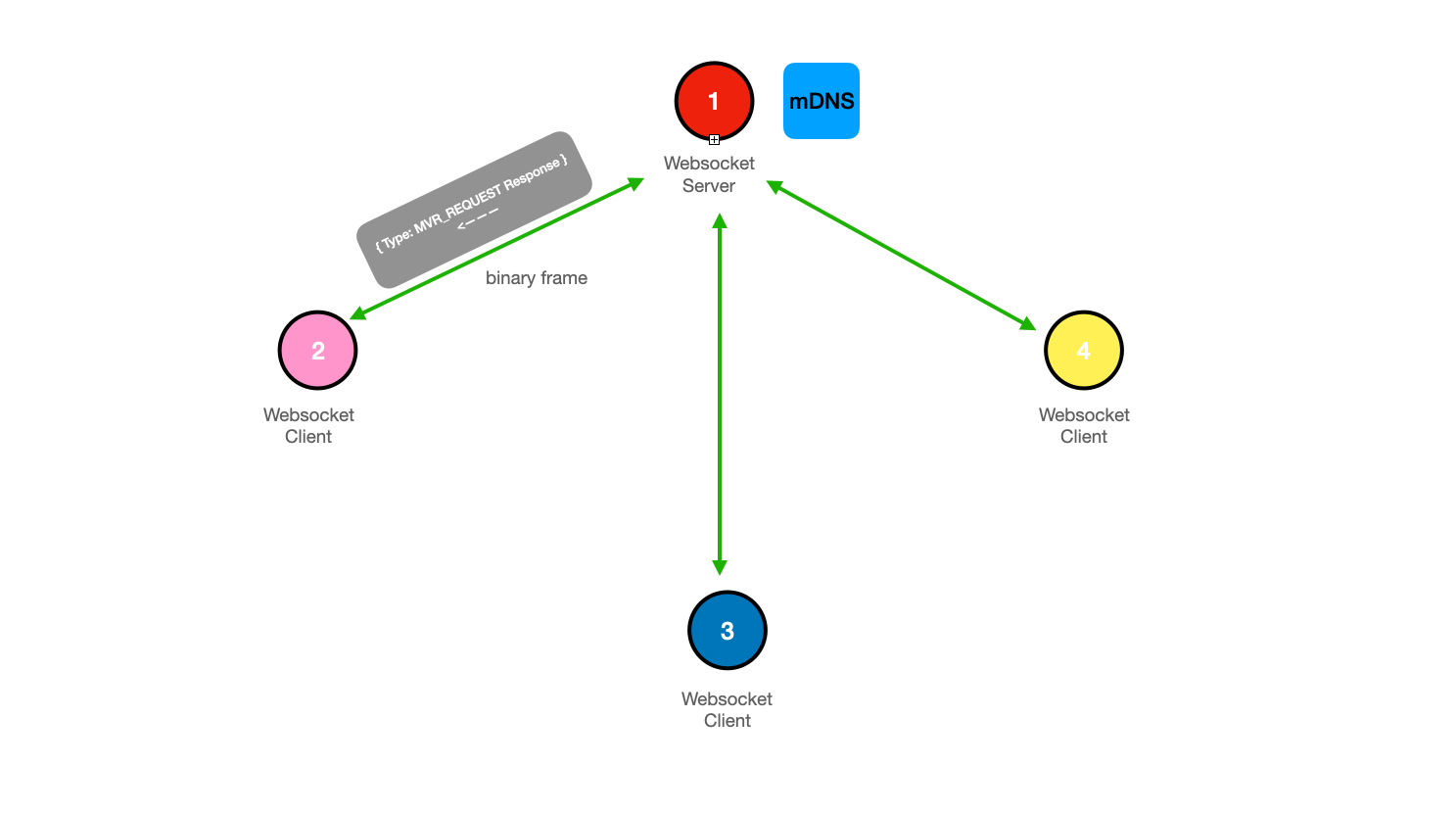

d) Server sends the MVR the MVR file as binary data to the station

Figure 10 shows the TCP mode for a MVR-xchange client that is requesting a file.

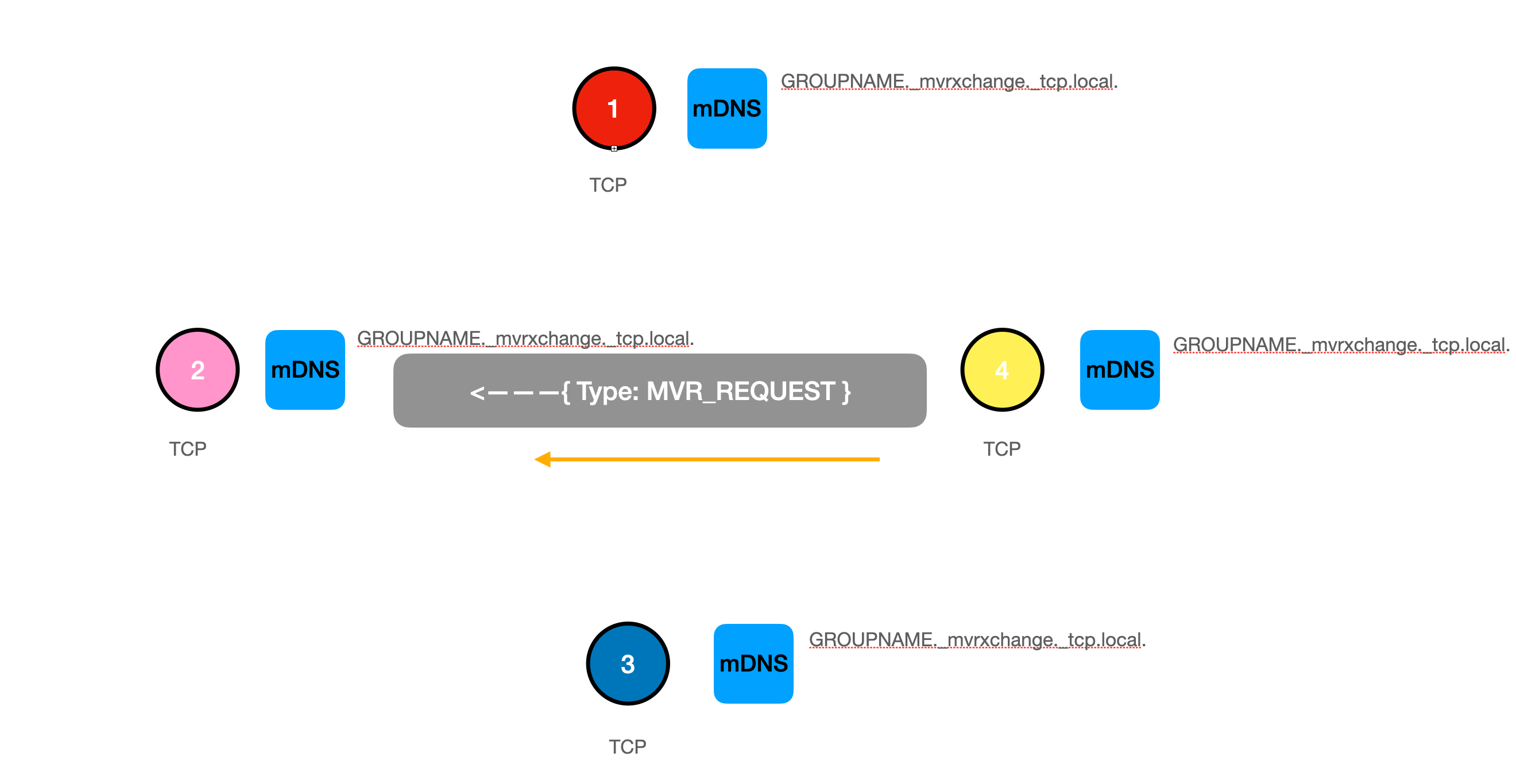

Figure 10 — TCP mode: MVR-xchange client requesting file#

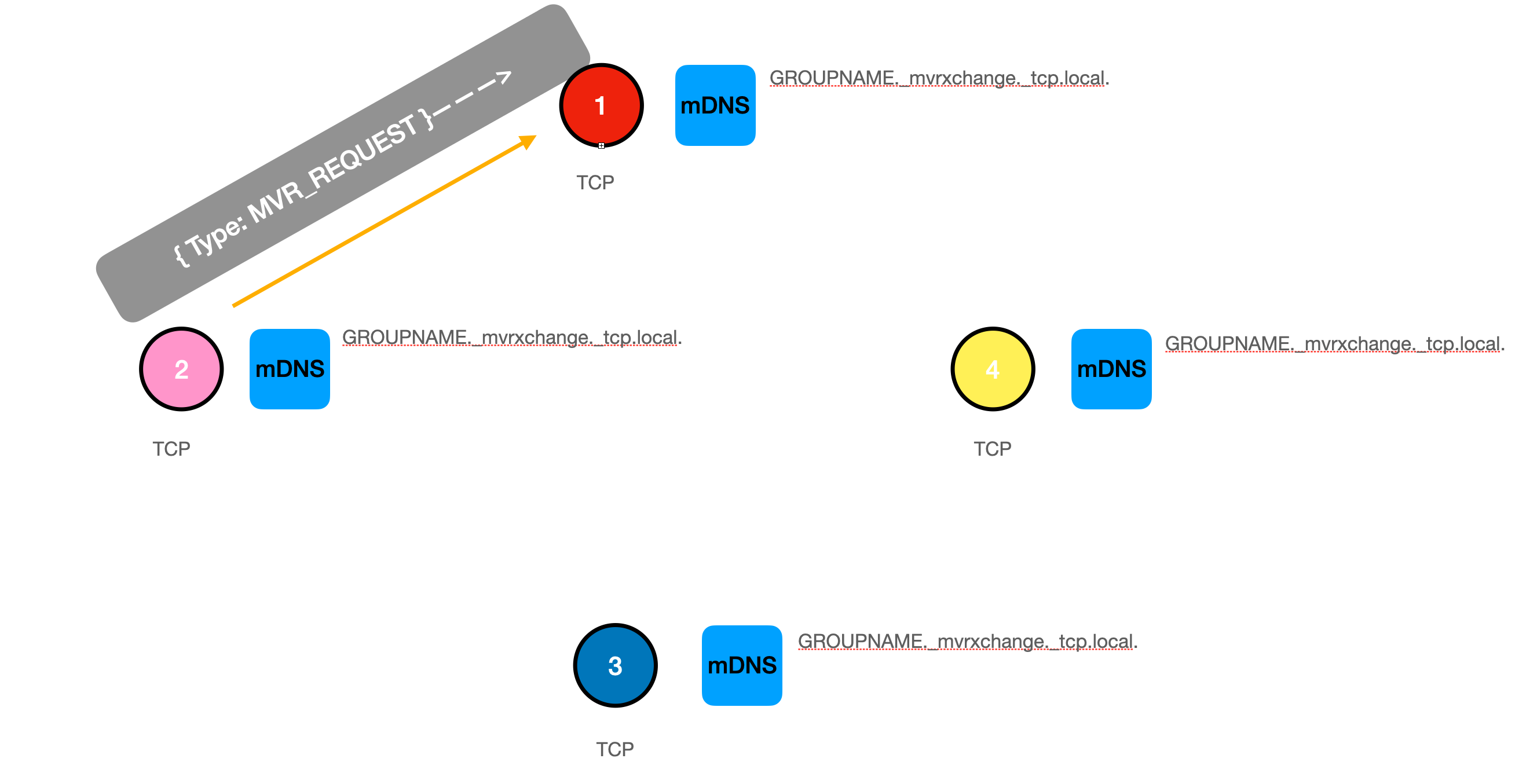

a) MVR-xchange client requests a MVR from another station

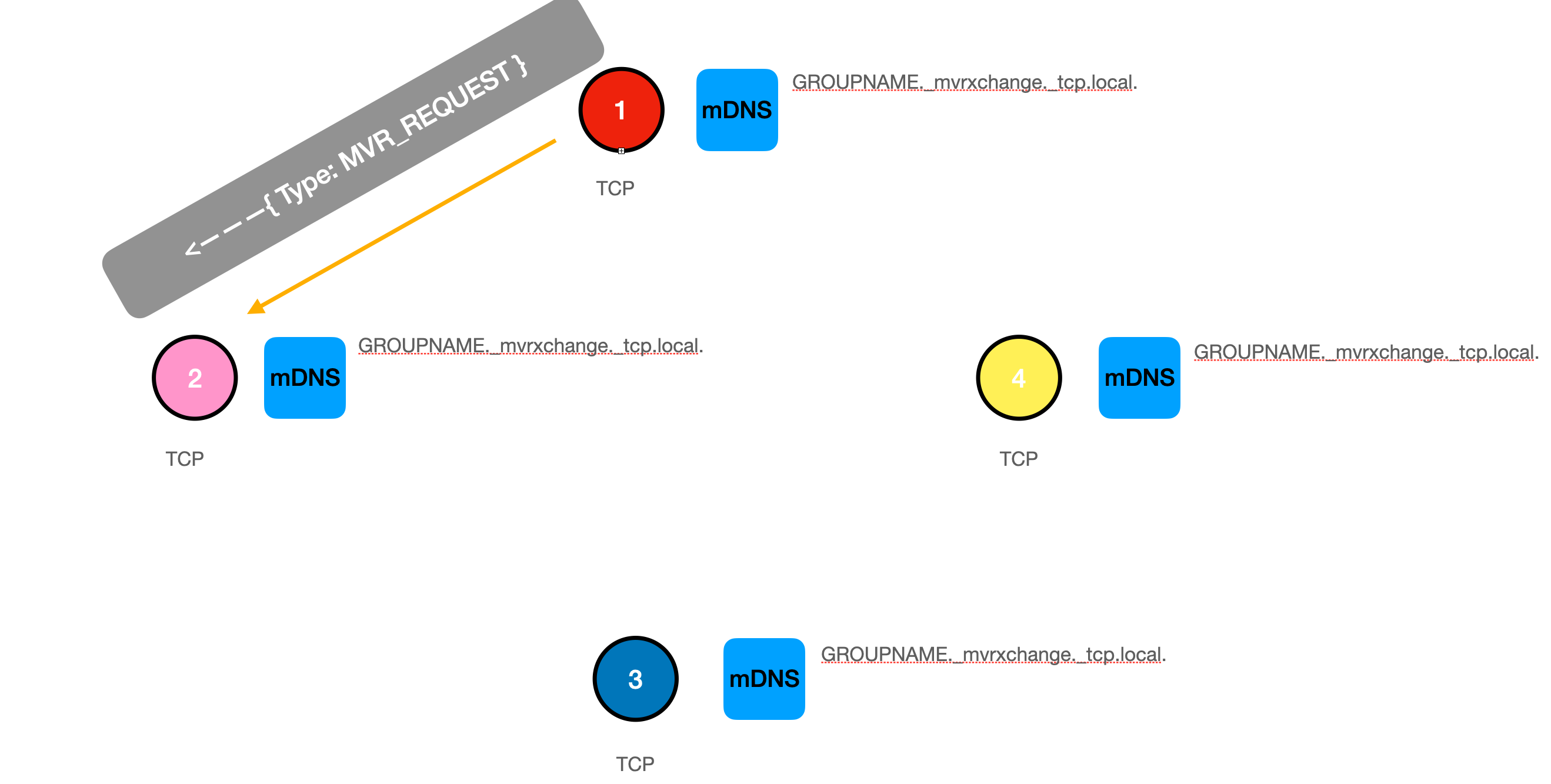

b) First requested station does not have the MVR and sends back a failure message,

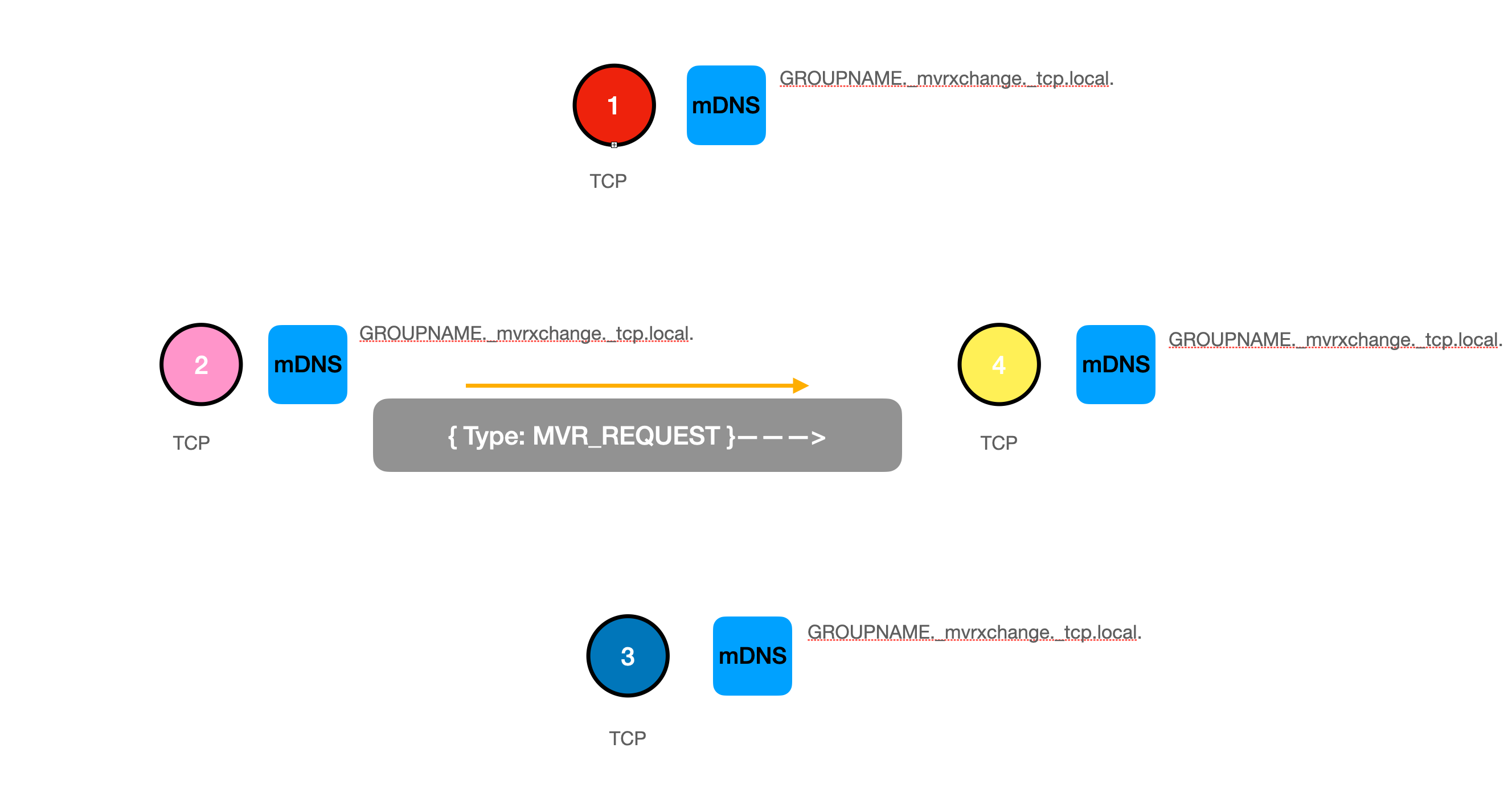

c) MVR-xchange client requests a MVR from another station

d) Second requested station does have the MVR and sends back the MVR file

The defined MVR_REQUEST message Attributes are specified in Table 74.

Table 74 — MVR_REQUEST message Attributes#

The defined MVR_REQUEST error response Attributes are specified in Table 75.

Table 75 — MVR_REQUEST error response Attributes#

Request:

{
  "Type": "MVR_REQUEST",
  "FromStationUUID":"",
  "FileUUID":"",
}

Response:

binary frame

OR

{
  "Type": "MVR_REQUEST_RET",
  "OK": "false",
  "Message": "The MVR is not available on this client"
}

MVR_NEW_SESSION_HOST message#

This message is used to inform other MVR-xchange clients of impending network configuration changes. This message is sent to all nodes in the network.

This message type is meantfor two use cases:

• Change the Service URL (WebSocket Mode) or the ServiceName (TCP Mode) of a network
• Switch the Mode of a network

This requires that only either ServiceName or SerivceURL are set. Setting both will return OK: false.

Change Service URL/Name#

This requires, that the current Network mode and the supplied message data are matching:

• If in WebSocket Mode, the ServiceURL shall be set
• If in TCP Mode, the ServiceName shall be set

When the receiving nodes are in TCP Mode:

Each receiver will try to connect to the mDNS service given in ServiceName and send a MVR_JOIN message. If this is successful, the nodes save the new Service Name and modify their own mDNS service. OK: true is returned. If no connection could be established, OK: false is returned.

When the receiving nodes are in WebSocket Mode:

Each receiver will try to connect to the URL given in ServiceURL and send a MVR_JOIN Message. If this is successful, the nodes save the URL and return OK: true. Otherwise OK: false is returned.

Switch Mode of a Network#

This requires, that the current Network mode and the supplied message data are not matching:

• If in WebSocket Mode, the ServiceName shall be set
• If in TCP Mode, the ServiceURL shall be set.

When the receiving nodes are in TCP Mode:

Each receiver will try to switch into WebSocket Mode by connecting to the URL given in ServiceURL and send a MVR_JOIN Message. If this is successful, then OK: true is returned and the mode is switched. If the URL is not reachable, then OK: false is returned.

When the receiving nodes are in WebSocket Mode:

Each receiver will try to switch into TCP Mode by connecting to the mDNS service given in ServiceName and send a MVR_JOIN Message. If this is successful, the nodes switch to TCP Mode and establish their own mDNS client as described above. OK: true is returned in this case. If the new mDNS service is not reachable OK: false is returned.

The defined MVR_NEW_SESSION_HOST message Attributes are specified in Table 76.

Table 76 — MVR_NEW_SESSION_HOST message Attributes#

The defined MVR_NEW_SESSION_HOST error response Attributes Attributes are specified in Table 77.

Table 77 — MVR_NEW_SESSION_HOST error response Attributes#

Request:

{
  "Type": "MVR_NEW_SESSION_HOST",
  "ServiceName":"fancyProjectGroup._mvrxchange._tcp.local.",
  "ServiceURL":"",
}

Response:

{
  "Type": "MVR_NEW_SESSION_HOST_RET",
  "OK": "true",
  "Message": ""

}
